Available NOW !!!

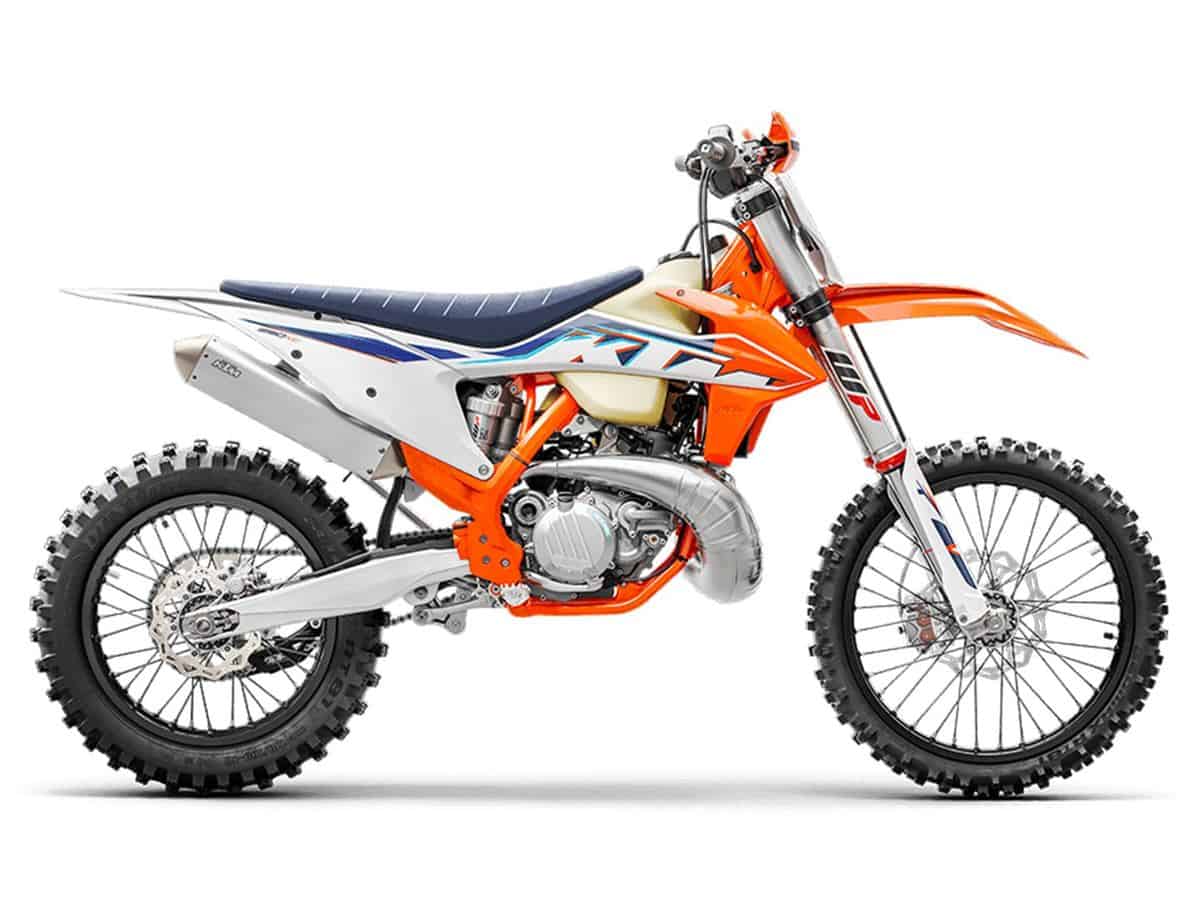

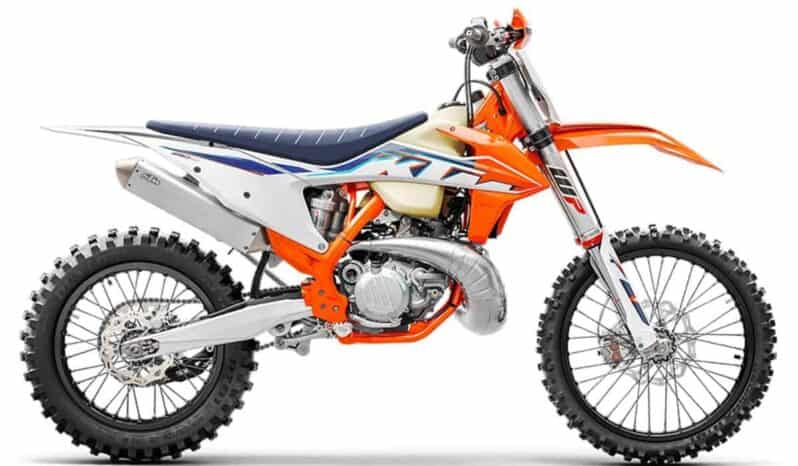

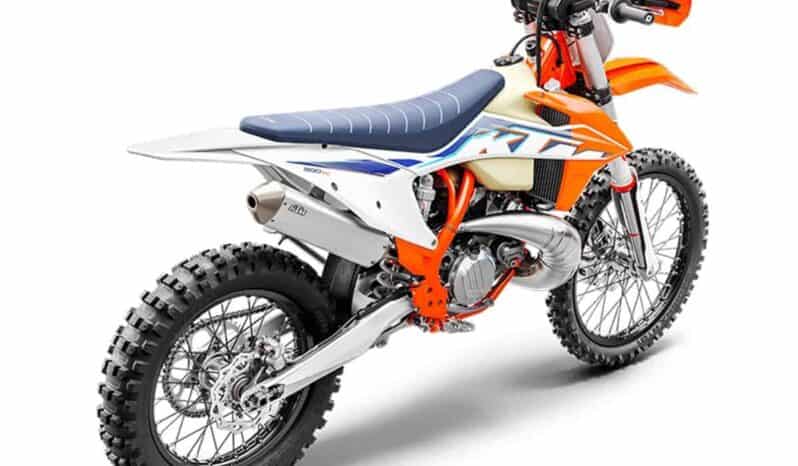

NEW 2022 250 XC TPI NOW !!!
On a scale of hardcore, cross-country firepower, the 2022 KTM 250 XC TPI rates as a 11. Sharing most of its DNA with the KTM 250 SX, it boasts the same awesome 2-stroke acceleration and top-end scream but merges that with a remarkably lightweight chassis, fuel-injection technology, and an 18" rear wheel. This means it totally decimates the competition off the line but has the legs to keep the fight going.
TECHNICAL DETAILS
ENGINE
TRANSMISSION 6-speed
STARTER Electric starter
STROKE 72 mm
BORE 66.4 mm
CLUTCH Wet, DDS multi-disc clutch, Brembo hydraulics
DISPLACEMENT 249 cm³
EMS Continental EMS
DESIGN 1-cylinder, 2-stroke engine
CHASSIS
WEIGHT (WITHOUT FUEL) 101.3 kg
TANK CAPACITY (APPROX.) 8.5 l
FRONT BRAKE DISC DIAMETER 260 mm
REAR BRAKE DISC DIAMETER 220 mm
FRONT BRAKE Disc brake
REAR BRAKE Disc brake
CHAIN 5/8 x 1/4"
FRAME DESIGN Central double-cradle-type 25CrMo4 steel
FRONT SUSPENSION WP XACT-USD, Ø 48 mm
GROUND CLEARANCE 375 mm
REAR SUSPENSION WP XACT Monoshock with linkage
SEAT HEIGHT 950 mm
STEERING HEAD ANGLE 63.9 °
SUSPENSION TRAVEL (FRONT) 310 mm
SUSPENSION TRAVEL (REAR) 300 mm
