Available NOW !!!

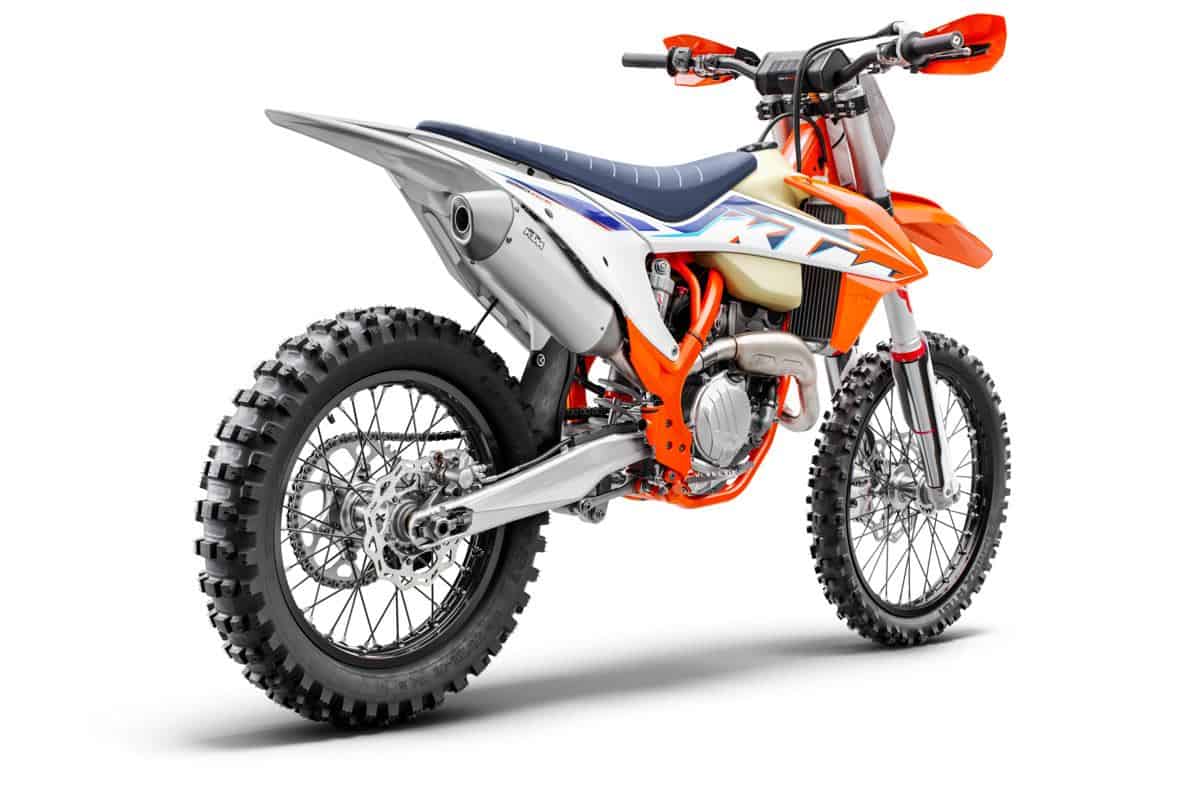

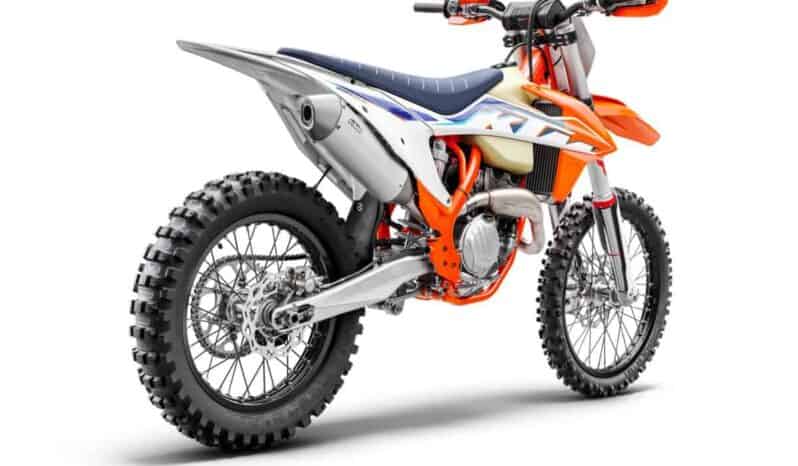

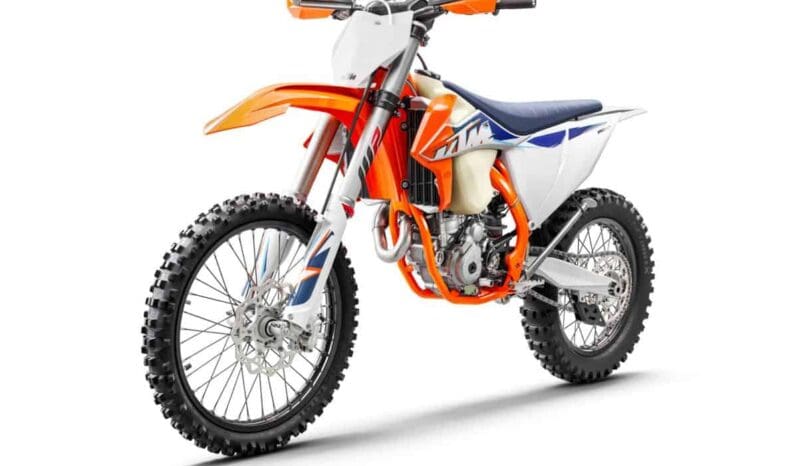

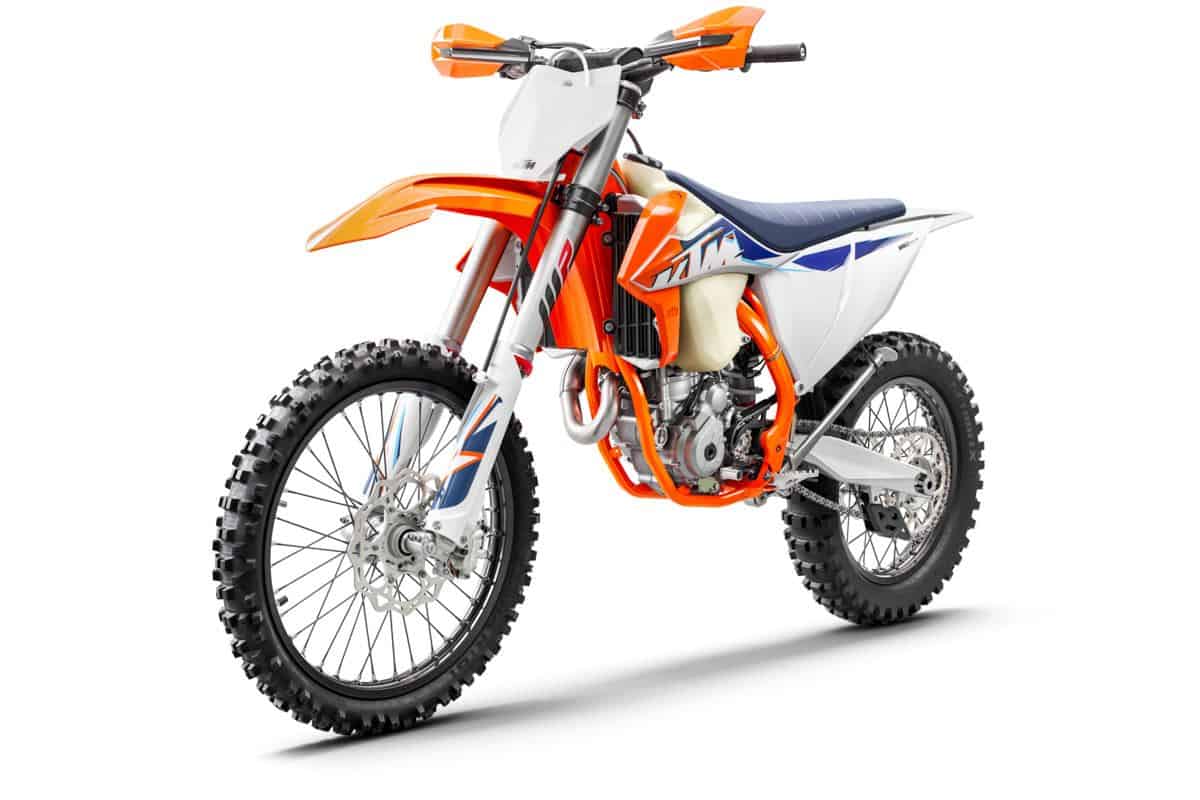

NEW 2022 350 XC-F
The KTM 350 XC-F merges an aggressive motocross personality, with a refined and forgiving chassis setup. That results in a machine that feels like a 250 but kicks up dust like a 450 - with the handling characteristics of an out-and-out racer. In short, it's one of the most complete offroad weapons in the KTM arsenal.
TECHNICAL DETAILS
ENGINE
TRANSMISSION 6-speed
STARTER Electric starter
STROKE 57.5 mm
BORE 88 mm
CLUTCH Wet multi-disc DS clutch, Brembo hydraulics
DISPLACEMENT 349.7 cm³
EMS Keihin EMS
DESIGN 1-cylinder, 4-stroke engine
CHASSIS
WEIGHT (WITHOUT FUEL) 100.5 kg
TANK CAPACITY (APPROX.) 8.5 l
FRONT BRAKE DISC DIAMETER 260 mm
REAR BRAKE DISC DIAMETER 220 mm
FRONT BRAKE Disc brake
REAR BRAKE Disc brake
CHAIN 5/8 x 1/4"
FRAME DESIGN Central double-cradle-type 25CrMo4 steel
FRONT SUSPENSION WP XACT-USD, Ø 48 mm
GROUND CLEARANCE 370 mm
REAR SUSPENSION WP XACT Monoshock with linkage
SEAT HEIGHT 950 mm
STEERING HEAD ANGLE 63.9 °
SUSPENSION TRAVEL (FRONT) 310 mm
SUSPENSION TRAVEL (REAR) 300 mm
