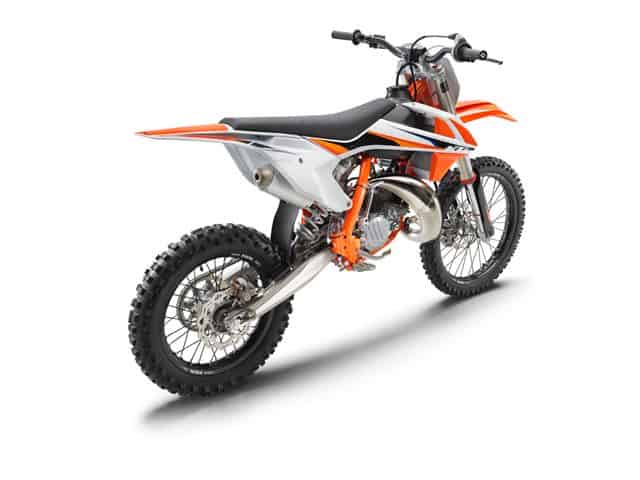

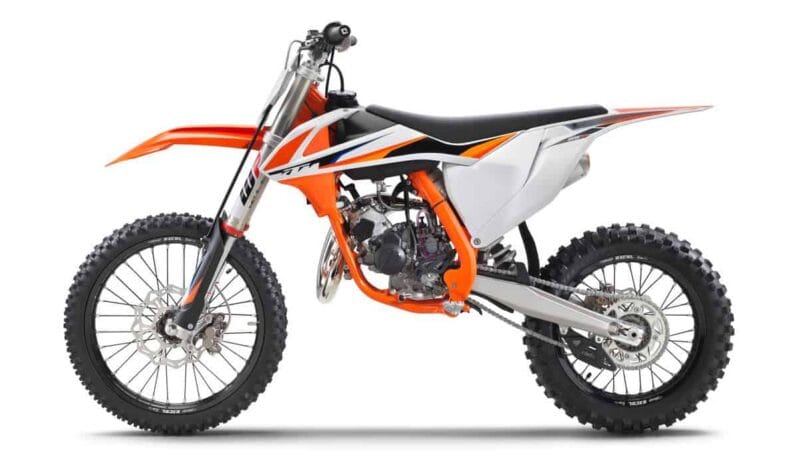

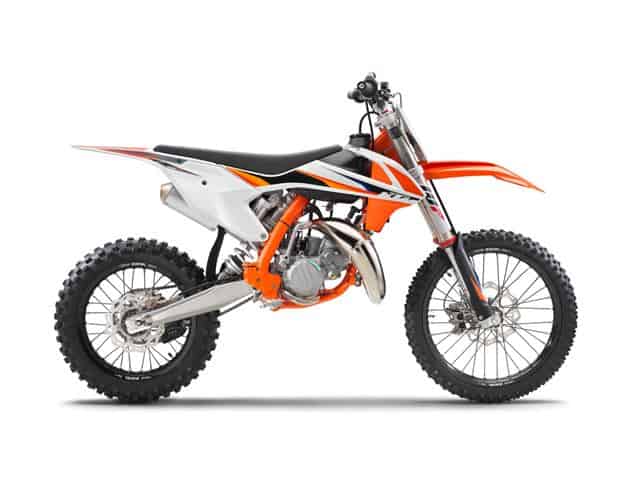

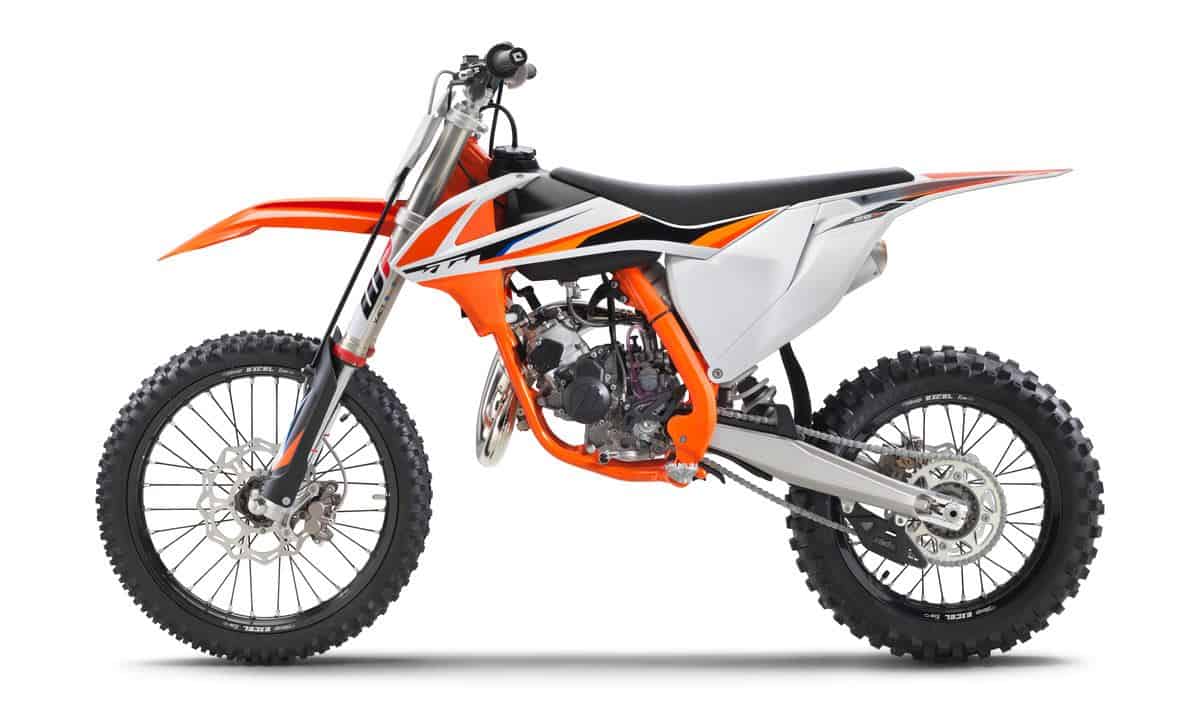

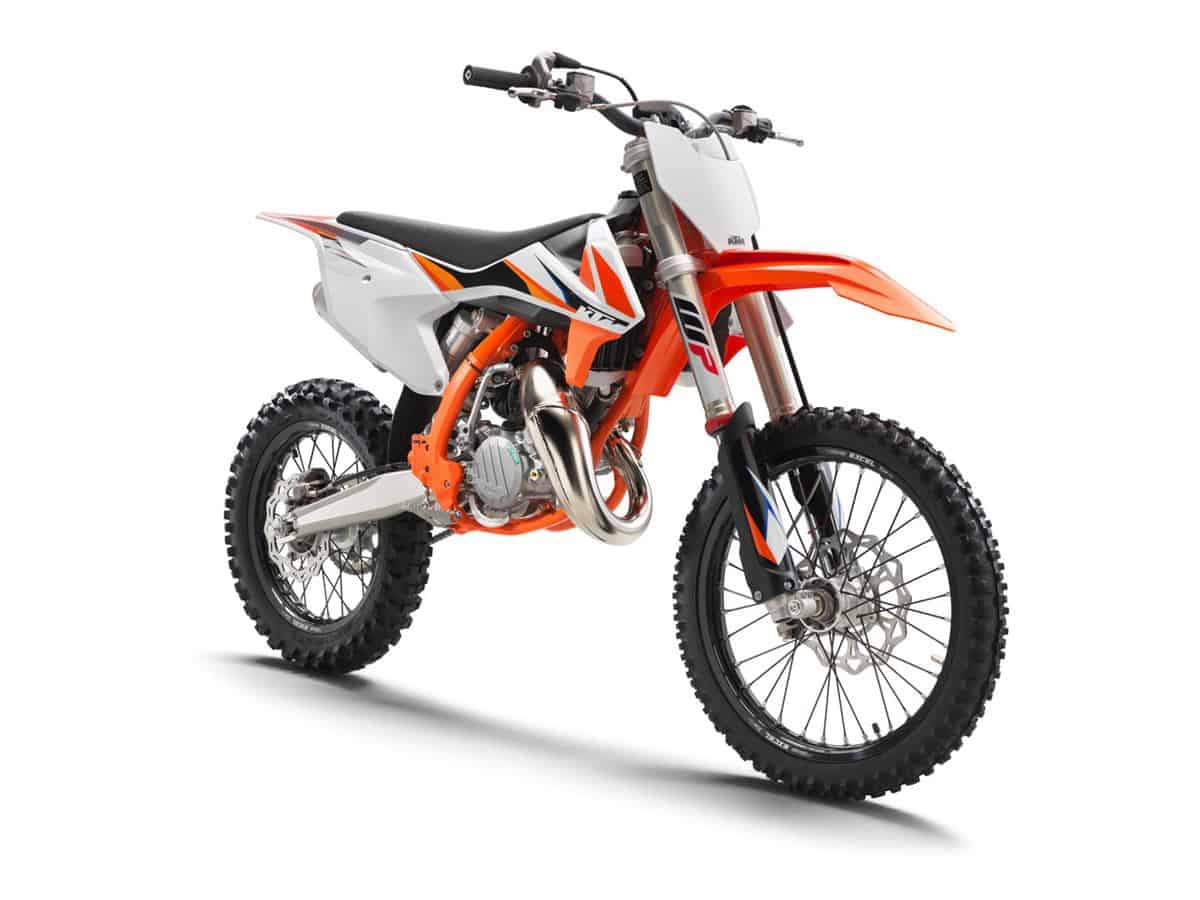

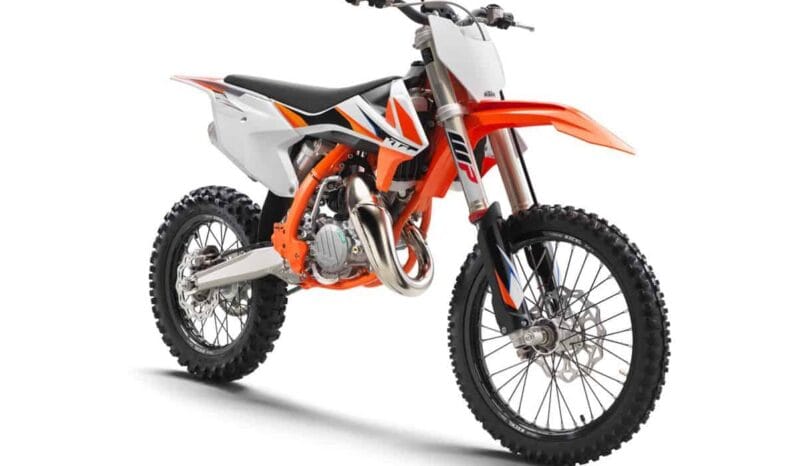

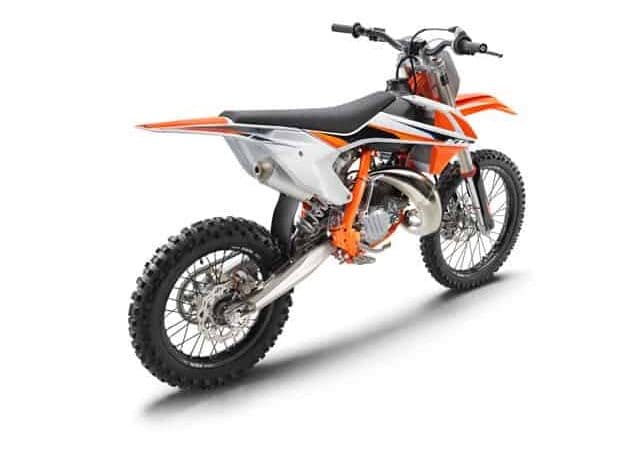

Available NOW, in store, THE NEW 2022 85 SX Small wheel.
17" Front wheel /14" rear wheel
The 2022 KTM 85 SX offers a real taste of the big leagues by giving young racers a real-world big bike experience with an impressive list of componentry and blistering performance. This is also thanks to its lightweight, high-quality frame which houses a compact rocket ship of an engine, delivering unrivaled rideability, providing the ultimate platform for aspiring racers.
TECHNICAL DETAILS
ENGINE
TRANSMISSION 6-speed
STARTER Kickstarter
STROKE 48.95 mm
BORE 47 mm
CLUTCH Wet, multi-disc clutch, Formula hydraulics
DISPLACEMENT 84.9 cm³
EMS MEDJ digital
DESIGN 1-cylinder, 2-stroke engine
CHASSIS
WEIGHT (WITHOUT FUEL) 67 kg
TANK CAPACITY (APPROX.) 5.2 l
FRONT BRAKE DISC DIAMETER 240 mm
REAR BRAKE DISC DIAMETER 220 mm
FRONT BRAKE Disc brake
REAR BRAKE Disc brake
CHAIN 1/2 x 5/16"
FRAME DESIGN Central-tube frame with double-cradle
FRONT SUSPENSION XACT 43 WP Upside-Down fork, Ø 43 mm
GROUND CLEARANCE 336 mm
REAR SUSPENSION WP XACT Monoshock with linkage
SEAT HEIGHT 865 mm
STEERING HEAD ANGLE 66 °
SUSPENSION TRAVEL (FRONT) 278 mm
SUSPENSION TRAVEL (REAR) 305 mm
